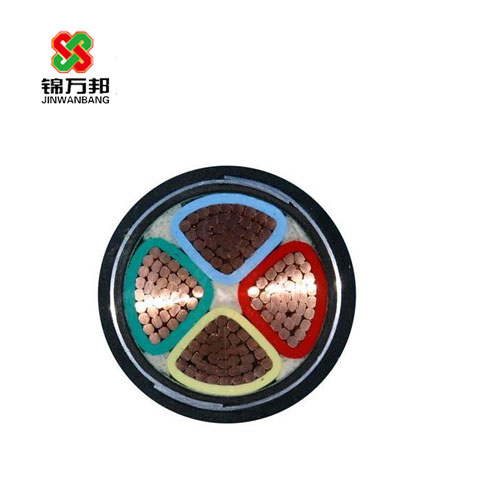

  • 0.61KV電力電纜.jpg

0.6/1KV電力電纜

0.6/1KV電力電纜供固定敷設在額定交流電壓UO/U為0．6/1KV及以下的室內、架空、電纜溝道、管道內的輸配電力線路用。
  • 電 話：15956084188
  • 傳 真：
  • 郵 箱：229877070@qq.com
Description

產品詳細介紹

標　　準：本產品按標準GB12706-2002或國際電工委員會IEC502-1994標準制造型　　號：VV，VLV一銅（鋁）芯聚氯乙烯J緣、聚氯乙烯護套電力電纜VV，VLV一銅（鋁）芯聚氯乙烯J緣、聚乙烯護套電力電纜

用　　途：供固定敷設在額定交流電壓UO/U為0．6/1KV及以下的室內、架空、電纜溝道、管道內的輸配電力線路用。

使用特性：

1、電纜敷設時的環境溫度不低于0oC，彎曲半徑應不小電纜外徑的10倍。

2、電纜導體的長期高溫度不超過70oC。

3、短路時（長持續時間不超過5S）電纜導體的高溫度不超過160oC。

產品規格：1芯：1．5--630mm

2芯：2*1．5--2*185mm

3芯：3*1．5-3*300mm

4 芯：4*4-4*300mm

3+1芯：3*4+1*2.5-3*300+1*150mm

3+2 芯：3*4+1*2.5-3*300+2*150mm

4+1芯：4*4+1*2.5-4*300+1*150mmVV,VLV,VY,VLY

標稱截面
mm2		線芯結構
ho/mm		J緣標稱厚度
mm		護套標稱厚度mm計算外徑
mm		環境溫度25°C 允許空氣中敷設截流量[A]環境溫度25°C 允許截流量埋地土壤熾熱阻系數g=80(°C厘米/瓦)
[A]		成品近似重量
kg/km
銅芯 Cu鋁芯Al銅芯 Cu鋁芯Al銅芯 Cu鋁芯Al
1.51/1.380.81.86.624-31-58-
2.51/1.780.81.87.0322545357156
4.01/2.251.01.87.9453461479773
6.01/2.761.01.88.45643775912184
107/1.351.01.89.7806110380177111
167/1.701.01.810.710683138106239139
257/2.141.21.812.4143111183140349190
357/2.521.21.813.6175133221170451232
5019/1.781.41.815.3223170272210624309
7019/2.141.41.817.1265207333256821384
9519/2.521.61.819.43292543923021085491
12037/2.031.61.821.03822974513481338589
15037/2.251.81.823.04453395163921642706
18537/2.522.01.825.25193925724362032858
24061/2.252.21.928.560947266751626051091
30061/2.522.42.031.570054172155732381340
40061/2.882.62.134.783264183864741731693
50061/3.152.82.239.097072795574351942085
63091/2.972.82.342.91124875103984964752542
2x1.52x1/1.380.81.810.420-26-120-
2x2.52x1/1.780.81.811.228213527150119
2x4.02x1/2.251.01.812.936294535206151
2x6.02x1/2.761.01.814.047365748255178
2x102x7/1.351.01.816.566517659361235
2x162x7/1.701.01.818.6896910177501300
2x252x7/2.141.21.817.211791131101721375
2x352x7/2.521.21.818.6143111156120903450
2x502x10/2.551.41.822.01801381921481255603
2x702x14/2.551.41.824.22171702351801680764
2x952x19/2.551.61.827.22381822802162215980
2x1202x24/2.551.61.929.627321132024727441184
2x1502x30/2.551.82.032.631524236528033961448
2x1852x37/2.552.02.135.835026940531141611762
3x1.53x1/1.380.81.810.817-22-143-
3x2.53x1/1.780.81.811.723183023183137
3x4.03x1/2.251.01.813.631243930254181
3x6.03x1/2.761.01.814.739314938326215
3x103x7/1.351.01.817.456436251482293
3x163x7/1.701.01.819.776598969680378
3x253x7/2.141.21.820.11027810783993494
3x353x7/2.521.21.822.5122941311011288604
3x503x10/2.551.41.825.21541221591231812829
3x703x14/2.551.41.827.819114819515024291054
3x953x19/2.551.62.031.823018023117832461392
3x1203x24/2.551.62.134.827020726220140191680
3x1503x30/2.551.82.238.331324430023150002077
3x1853x37/2.552.02.342.236028133926261292532
3x2403x48/2.552.22.547.542933439630178833221
3x3003x60/2.552.42.652.247737645135595283879
4x4.04x1/2.251.01.814.728223829328229
4x6.04x1/2.761.01.815.938284837419272
4x104x7/1.351.01.819.051406147633386
4x164x7/1.701.01.821.568538162919575
4x254x7/2.141.21.822.09271106821282647
4x354x7/2.521.21.824.0115891341031699811
4x504x10/2.551.41.828.014411116312523841108
4x704x14/2.551.42.031.517813619615132151433
4x954x19/2.551.62.135.921816823418142861872
4x1204x24/2.551.62.239.125319526720653062245
4x1504x30/2.551.82.343.029722830123166352807
4x1854x37/2.552.02.548.234426333826181393431
4x2404x48/2.552.22.753.6406310390300104754358
4x3004x60/2.552.42.959.3452351450354129925361

168446620
3x4.0+1x2.53x1/2.25+1x1/1.781.0/0.81.813.628223829286212
3x6.0+1x4.03x1/2.76+1x1/2.251.0/1.01.814.738284837378212
3x10+1x6.03x7/1.35+1x1/2.761.0/1.01.817.451406147550323
3x16+1x103x7/1.70+1x7/1.351.0/1.01.819.668538061799484
3x25+1x163x7/2.14+1x7/1.701.2/1.01.822.29271106821197600
3x35+1x163x7/2.52+1x7/1.701.2/1.01.824.0115891301011508728
3x50+1x253x10/2.55+1x7/2.141.4/1.21.928.114411116112421411004
3x70+1x353x14/2.55+1x7/2.521.4/1.22.031.517813619414828901295
3x95+1x503x19/2.55+1x19/1.781.6/1.42.135.921816823117728661707
3x120+1x703x24/2.55+1x19/2.141.6/1.42.239.125319526320448522085
3x150+1x703x30/2.55+1x19/2.141.8/1.42.343.029722830323358602493
3x185+1x953x37/2.55+1x19/2.522.0/1.62.547.834426334026372993097
3x240+1x1203x48/2.55+1x37/2.032.2/1.62.753.640631039030093233896
3x300+1x1503x60/2.55+1x37/2.252.4/1.82.959.3452351450354113284725
4x4+1x1.254x1/2.25+1x1/1.781.0/0.81.815.028223829331226
4x6+1x44x1/2.76+1x1/2.251.0/1.01.816.638284837442282
4x10+1x64x7/1.35+1x1/2.761.0/1.01.818.751406550628364
4x16+1x104x7/1.70+1x7/1.351.0/1.01.822.668538465932505
4x25+1x164x7/2.14+1x7/1.701.2/1.01.824.48768109821413689
4x35+1x164x7/2.52+1x7/1.701.2/1.01.826.4116891401071691807
4x50+1x254x10/2.55+1x7/2.141.4/1.22.031.214411017113124261130
4x70+1x354x14/2.55+1x7/2.521.4/1.22.135.017713220715932681453
4x95+1x504x19/2.55+1x19/1.781.6/1.42.239.821916825019143961916
4x120+1x704x24/2.55+1x19/2.141.6/1.42.443.625019528522055822372
4x150+1x704x30/2.55+1x19/2.141.8/1.42.548.229022032224866012790
4x185+1x954x37/2.55+1x19/2.522.0/1.62.753.633125636328082883484
4x240+1x1204x48/2.55+1x37/2.032.2/1.62.959.4408315415320105404353
4x300+1x1504x60/2.55+1x37/2.252.4/1.83.165.8452351450354128795323
3x25+2x163x7/2.23+2x7/1.701.2/1.01.824.49271111861413689
3x35+2x163x7/2.52+2x7/1.701.2/1.01.826.4115891391071691807
3x50+2x253x10/2.55+2x7/2.141.4/1.22.031.214411117313324261130
3x70+2x353x14/2.55+2x7/2.521.4/1.22.135.017813620816032681453
3x95+2x503x19/2.55+2x19/1.781.6/1.42.239.821816824919143961916
3x120+2x703x24/2.55+2x19/2.141.6/1.42.443.625319528522055822372
3x150+2x703x30/2.55+2x19/2.141.8/1.42.548.229722832925366012790
3x185+2x953x37/2.55+2x19/2.552.0/1.62.753.634426337028682883484
3x240+2x1203x48/2.55+2x37/2.032.2/1.62.959.4406310436341105404353
3x300+2x1503x60/2.55+2x37/2.252.4/1.83.165.8452351450354128795323
