Description

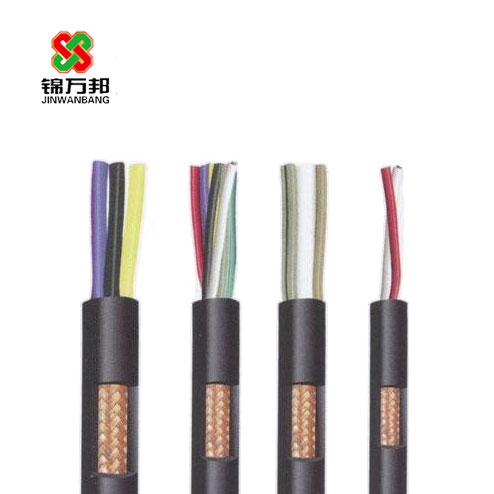

       485通訊線

      本產品適用于交流額定電壓300/300V及以下電器、儀表、電子設備及自動化裝置，電線（電纜）線芯長期允許工作溫度70℃，AV-90型、RVP-90型，長期允許工作溫度 90℃。
     ●主要技術性能
     1、電線（電纜）的導體電阻，應符合表列規定。
     2、兩芯及以上電纜的J緣線芯應絞合成纜，外層絞合方向為右向。
     3、電線（電纜）的J緣線芯應經受交流電壓50Hz 1500V實驗5min

一、

RVAVP RVAVP-90 300/300V銅芯聚氯乙稀J緣金屬屏蔽電線

標稱截面

根數/單線 標稱直徑

J緣厚度 規定值

平均外徑
mm

2O°C時導體電阻Ω/Km不大于
2O°C Ω/Km ≤

參考重量

上限

銅芯

鍍錫銅芯

0.081/0.320.41.9225.2229.64.14
0.121/0.400.42.0144.1146.96.66
0.21/0.500.42.192.3947.4
0.31/0.600.42.264.165.37.88
0.41/0.700.42.347.14810.14
二、RVSVP 300/300V銅芯聚氯乙稀J緣、金屬屏蔽、聚氯乙稀護套軟電纜（電線）

標稱截面
mm2

根數/單線 標稱直徑
 mm

J緣厚度 規定值
mm

護套厚度規定值 mm

平均外徑
D

2O°C時導體電阻Ω/Km不大于
Conductor Resistance at 2O°C Ω/Km ≤

參考重量
Kg/Km

下限

上限

銅芯

鍍錫銅芯

1×0.087/0.120.40.42.42.92472549.3
1×0.127/0.150.40.42.43.015816310.6
1×0.212/0.150.40.42.63.292.39513.2
1×0.316/0.150.50.42.93.569.271.216.1
1×0.423/0.150.50.43.03.748.249.618.8
1×0.528/0.150.50.43.13.83940.119.9
1×0.7542/0.150.50.43.44.12626.724.1
1×1.032/0.200.60.64.14.919.52034.1
1×1.548/0.200.60.64.35.213.313.739.9
1×2.577/0.200.70.64.96.07.988.2164.6
2×0.087/0.120.40.43.24.224725416.8
2×0.087/0.120.40.42.4×3.52.9×4.224725414.9
2×0.127/0.150.40.63.74.915816322.3
2×0.127/0.150.40.62.8×43.4×4.915816320.5
2×0.212/0.150.40.64.15.392.39528.3
2×0.212/0.150.40.63.0×4.43.6×5.392.39525.7
2×0.316/0.150.50.64.86.269.271.241.1
2×0.316/0.150.50.63.5×5.14.2×6.269.271.237.3
2×0.423/0.150.50.65.16.648.249.645.1
2×0.423/0.150.50.63.6×5.44.4×6.648.249.643.7
2×0.528/0.150.50.65.36.83940.143.7
2×0.528/0.150.50.63.7×5.64.5×6.83940.145.9
2×0.7542/0.150.50.65.87.42626.759.7
2×0.7542/0.150.50.64×6.14.8×7.42626.755.2
2×132/0.20.60.66.48.219.52073.9
2×132/0.20.60.64.3×6.75.2×8.319.52069.4
2×1.548/0.200.60.87.39.213.313.795.5
2×1.548/0.200.60.84.9×7.66.0×9.313.313.788.9
3×0.127/0.150.40.63.95.115816326.3
3×0.212/0.150.40.64.55.892.39538.9
3×0.316/0.150.50.65.16.569.271.248.7
3×0.423/0.250.50.65.46.948.249.661.7
3×0.528/0.150.50.65.67.13940.166.5
3×0.7542/0.150.50.66.17.82626.773.7
3×1.032/0.20.60.87.29.119.520100.4
3×1.548/0.20.60.88.010.013.313.7132.5
4×0.127/0.150.40.64.55.815816335.4
4×0.212/0.150.40.64.96.292.39545.5
4×0.316/0.150.50.65.57.069.271.257.8
4×0.423/0.150.50.65.97.548.249.667.9
5×0.127/0.150.40.64.86.215816340.7
5×0.212/0.150.40.65.36.792.39552.9
5×0.316/0.150.50.66.07.669.271.266.8
5×0.423/0.150.50.66.48.148.249.678.4
6-7×0.127/0.150.40.65.26.615816345.8
6-7×0.212/0.150.40.65.77.292.39560.3
6-7×0.316/0.150.50.66.58.269.271.276.7
6-7×0.423/0.150.50.87.39.248.249.698.7
三、RVSP、RVSP-90 300/300V銅芯聚氯乙烯J緣金屬屏蔽電線

標稱截面
mm2

根數/單線 標稱直徑
mm

J緣厚度 規定值
mm

平均外徑
mm

2O°C時導體電阻Ω/Km不大于
 2O°C Ω/Km ≤

參考重量
Kg/Km

上限

銅芯

鍍錫銅芯

1×0.087/0.120.41.92472544.8
1×0.127/0.150.42.01581636.0
1×0.212/0.150.42.292.3958.4
1×0.316/0.150.52.669.271.210.8
1×0.423/0.150.53.048.249.615.9
1×0.528/0.150.53.13940.116.9
1×0.7542/0.150.53.42626.721
1×1.032/0.200.63.819.52026.8
1×1.548/0.200.64.113.313.732.1
1×2.577/0.200.74.97.988.2148.3
2×0.087/0.120.43.32472549.6
2×0.087/0.120.41.9×3.32472548.8
2×0.127/0.150.43.515816310.8
2×0.127/0.150.42.0×3.515816310.0
2×0.212/0.150.43.992.39516.0
2×0.212/0.150.42.2×3.992.39514.5
2×0.316/0.150.54.869.271.226.0
2×0.316/0.150.52.8×4.869.271.223.1
2×0.423/0.150.55.248.249.630.7
2×0.423/0.150.53.0×5.248.249.628.1
2×0.528/0.150.55.43940.130.9
2×0.528/0.150.53.1×5.43940.130.1
2×0.7542/0.150.56.02626.741.1
2×0.7542/0.150.53.4×6.02626.737.6
2×132/0.20.66.819.52052.5
2×132/0.20.63.8×6.819.52048.6
2×1.548/0.200.67.413.313.764.0
2×1.548/0.200.64.1×7.413.313.759.6
